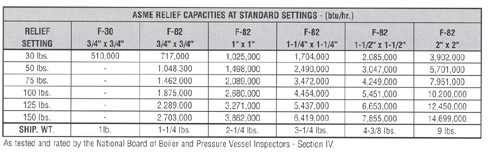

| F-30, F-82 ASME SAFETY RELIEF VALVES (FOR HOT WATER) |
APPLICATIONS:
Designed for use on hot water space heating boilers, water supply heaters & storage tanks. Not to be
used on steam.
SIZES: 3/4", 1",1-1/4",1-1/2", 2" (F-30 3/4" only)
FEATURES:
ASME listed and rated for emergency steam discharge by the National Board of Boiler and Pressure
Vessel Inspectors. Bronze body and inside working parts, silicone seat, stainless steel spring. "Pop" type
action provides maximum safety. F-30 set at 30 psi only.
OPTIONS:
F-82 available with relief settings from 30 to 150 psi.
Designed for use on hot water space heating boilers, water supply heaters & storage tanks. Not to be
used on steam.
SIZES: 3/4", 1",1-1/4",1-1/2", 2" (F-30 3/4" only)
FEATURES:
ASME listed and rated for emergency steam discharge by the National Board of Boiler and Pressure
Vessel Inspectors. Bronze body and inside working parts, silicone seat, stainless steel spring. "Pop" type
action provides maximum safety. F-30 set at 30 psi only.
OPTIONS:
F-82 available with relief settings from 30 to 150 psi.

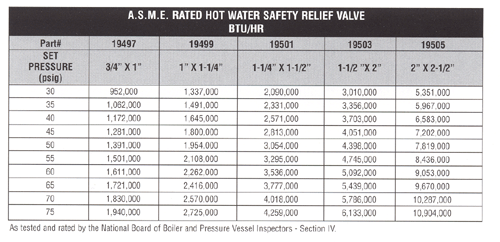

| F-95 ASME SAFETY RELIEF VALVES (FOR HOT WATER) |
F-30
F-82
APPLICATIONS:
The Cash-Acme F-95 Expanded Outlet Pressure Relief Valve Series offers a complete package of
expanded boiler safety relief valves in sizes ranging from 3/4" x 1" to 2" x 2-1/2", This complete range of
sizes provides pressure protection for nearly all commercial/industrial GEM boilers and hot water
heating system applications.
SIZES: 3/4"x1", 1"x1-1/4", 1-1/4" x 1-1/2" 1-1/2" x 2", 2" x 2-1/2"
FEATURES:
Iron body construction, brass seat, silicone seat disc and EP diaphragms for high temperature
applications. Pop type action.
OPTIONS:
Available with relief settings from 30 to 75 psi.
The Cash-Acme F-95 Expanded Outlet Pressure Relief Valve Series offers a complete package of
expanded boiler safety relief valves in sizes ranging from 3/4" x 1" to 2" x 2-1/2", This complete range of
sizes provides pressure protection for nearly all commercial/industrial GEM boilers and hot water
heating system applications.
SIZES: 3/4"x1", 1"x1-1/4", 1-1/4" x 1-1/2" 1-1/2" x 2", 2" x 2-1/2"
FEATURES:
Iron body construction, brass seat, silicone seat disc and EP diaphragms for high temperature
applications. Pop type action.
OPTIONS:
Available with relief settings from 30 to 75 psi.
